MBB
Datasheet:MBB DatasheetFeatures:
Applications
DescriptionMBB is designed for low profile platform scales and tank scales in low capacities. It is constructed of high alloy tool steel which offers superior performance in creep characteristics and shock load capabilities over standard aluminum units. MBB is fully potted and sealed with special chemical compounds to IP66 providing excellent protection against moisture and humidity. |
| Product name : | CELTRON MBB Miniature Bending Beam Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 50lb,100lb,150lb,250lb |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 3.0mV/V |
| 非线性: | 0.03%R.O. |
| Hysteresis: | 0.03%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 385±5Ω |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 合金钢 |
| Degree of protection: | IP66 |
| The lengh of the cable: | 1.5m |

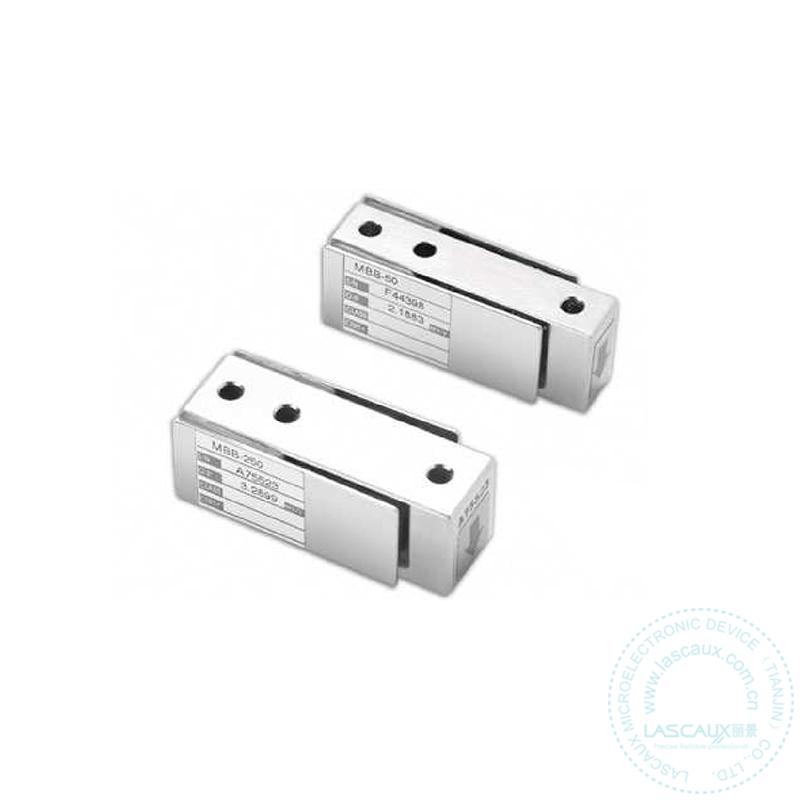

CELTRON MBB Miniature Bending Beam Load Cell
