HOC
Datasheet:HOC DatasheetFeatures:
Applications

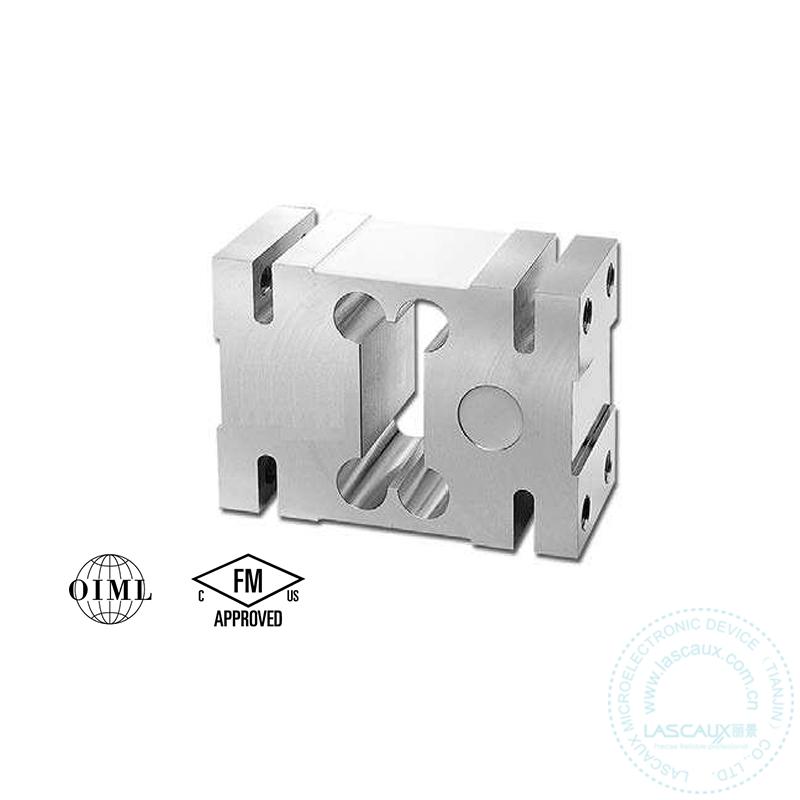

DescriptionHOC is a single-point load cell of side mount construction designed for platform scales, and hanging scales. It is a cost-effective load cell for scales of simple construction. HOC is constructed of anodized aluminum, and is environmentally sealed up to IP66 providing excellent protection against moisture and humidity.
|
| Product name : | CELTRON HOC High Capacity Off-Center Single-Point Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 750kg,1000kg,2000kg |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 2.0mV/V |
| 非线性: | 0.02%R.O. |
| Hysteresis: | 0.02%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 200%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 410±10Ω |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 阳极氧化铝 |
| Degree of protection: | IP66 |
| The lengh of the cable: | 3.1m |
CELTRON HOC High Capacity Off-Center Single-Point Load Cell
