LPS
Datasheet:LPS DatasheetFeatures:
Applications
DescriptionLPS is designed for electronic scales and platform scales where only one load cell can be used and low profile is required. It is the lightest model of Celtron single-point load cell family. The design is most suitable for mass production operations. LPS is constructed of anodized aluminum and is fully potted IP66 levels, providing excellent protection against moisture ingression. |
| Product name : | CELTRON LPS Low Profile Single-Point Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 0.6kg,1kg,2kg,3kg,6kg,10kg,15kg,20kg,30kg,35kg,60kg,100kg,200kg |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 1.0mV/V(1kg以下)/2.0mV/V |
| 非线性: | 0.03%R.O. |
| Hysteresis: | 0.03%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O |
| Ultimate overload: | 200%R.O |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 410±10Ω |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 阳极氧化铝 |
| Degree of protection: | IP66 |
| The lengh of the cable: | 30cm(0.6kg-3kg),45cm(6kg-35kg),2m(60kg-200kg) |

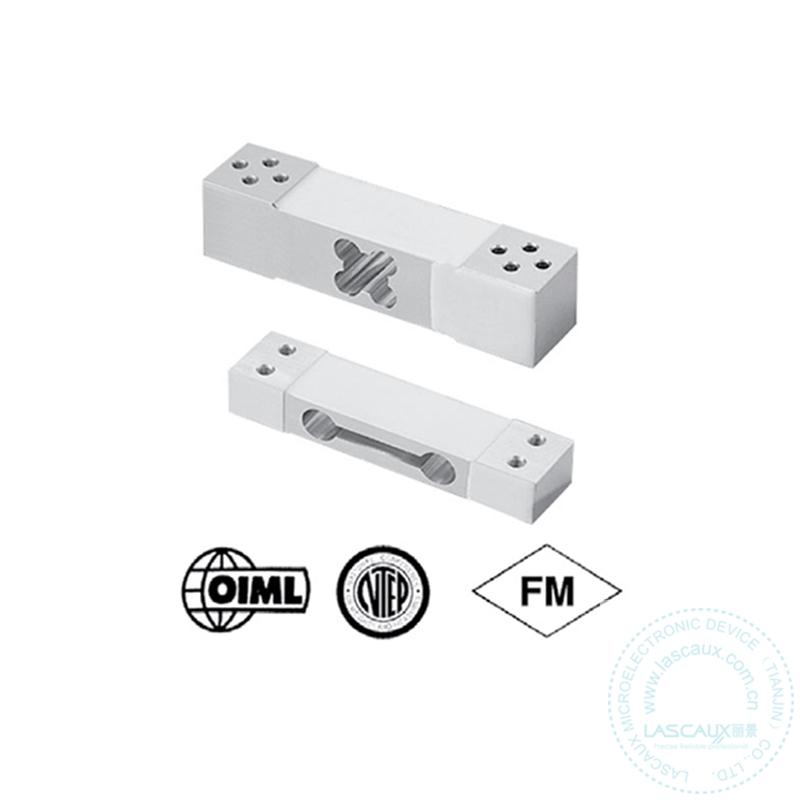

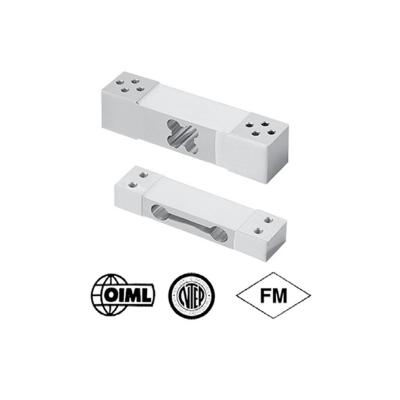

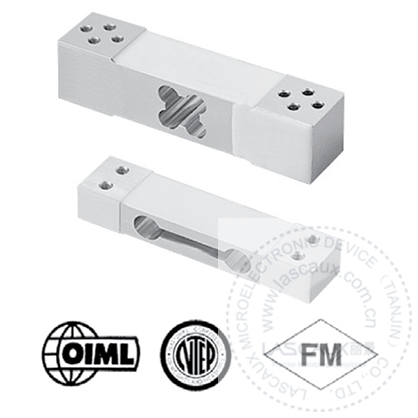

CELTRON LPS Low Profile Single-Point Load Cell
