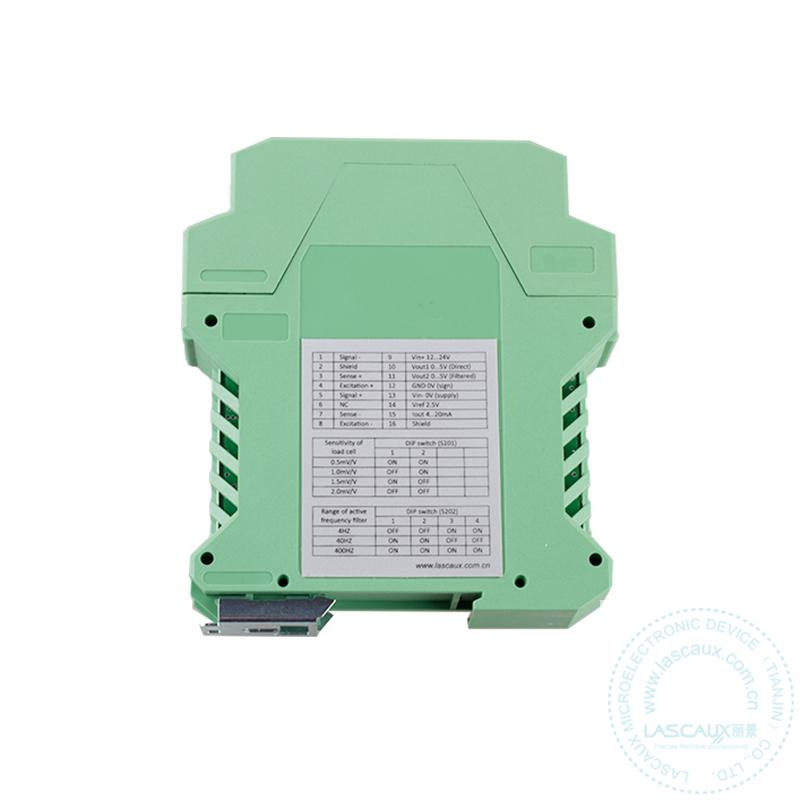

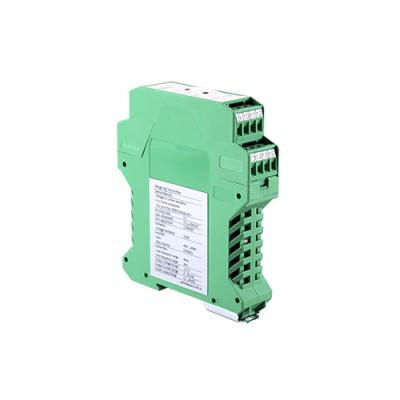

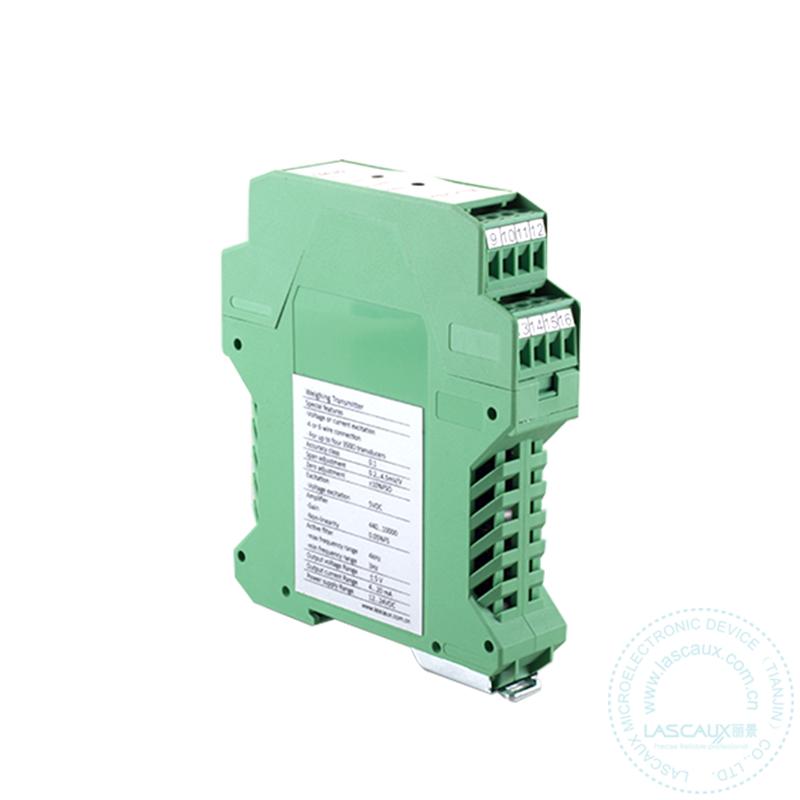

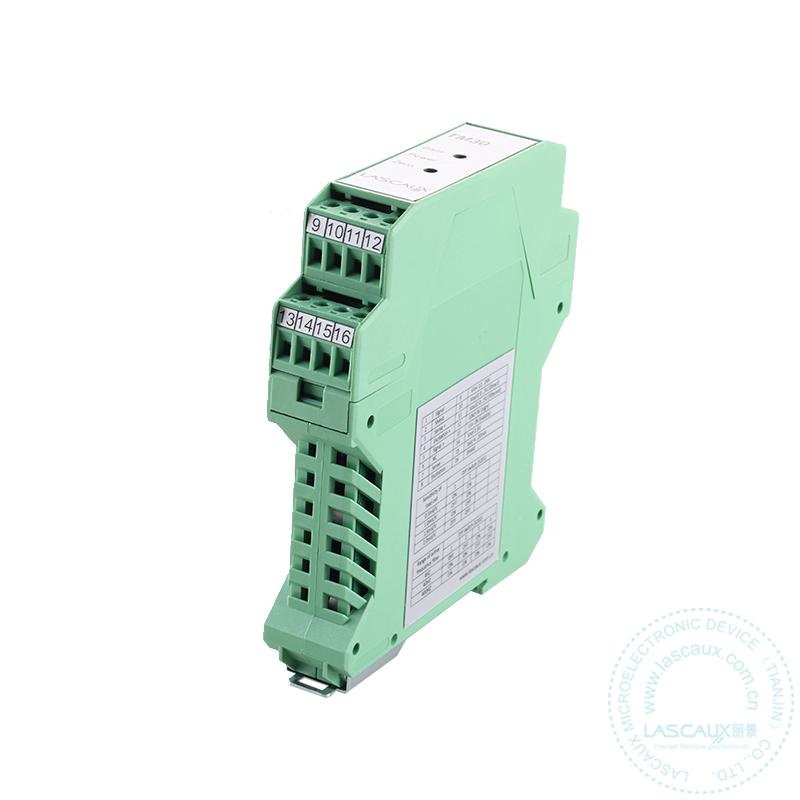

TM30 Weighing Indicator/Transmitter
Model: TM30 Features: 1. Analog output of 0～5V,4～20mA. 2. 4 or 6 wire connection 3. 1 - four 350 Ω sensors can be connected 4. Parameter setting through DIP switch. 5. The plastic housing can be mounted on DIN rail.
Specifications：
Dimensions（in mm）：
|
|||||||||||||||||||||||||||||||||||||||
| Product name : | TM30 Aanlog Transmitter |
| Product brand : | LIBIRINTH |
| Warranty: | 12 month |
| Power supplies: | DC12-24V |
| Install: | DIN35 Installation |
| Accuracy class: | 0.1 |
| Sensitivity adjustment: | 0.2mV/V-4.5mV/V |
| Excitation voltage: | +7.5V -2.5V |
| Gain: | 440-10000 |
| Input offset voltage Gain: | 1uV/℃ |
| Thermal sensitivity drift: | 150ppm/℃ |
| Non-linearity: | 0.05%FS |
| Maximum frequency range: | 4KHz |
| Minimum frequency range: | 3Hz |
| Operating temperature: | -10-+50℃ |
| Storage temperature: | -40-+85℃ |
| Protection Class: | IP20 |
