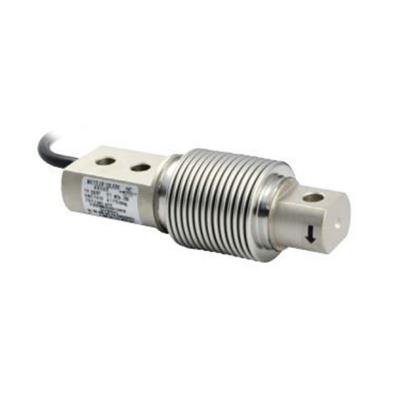

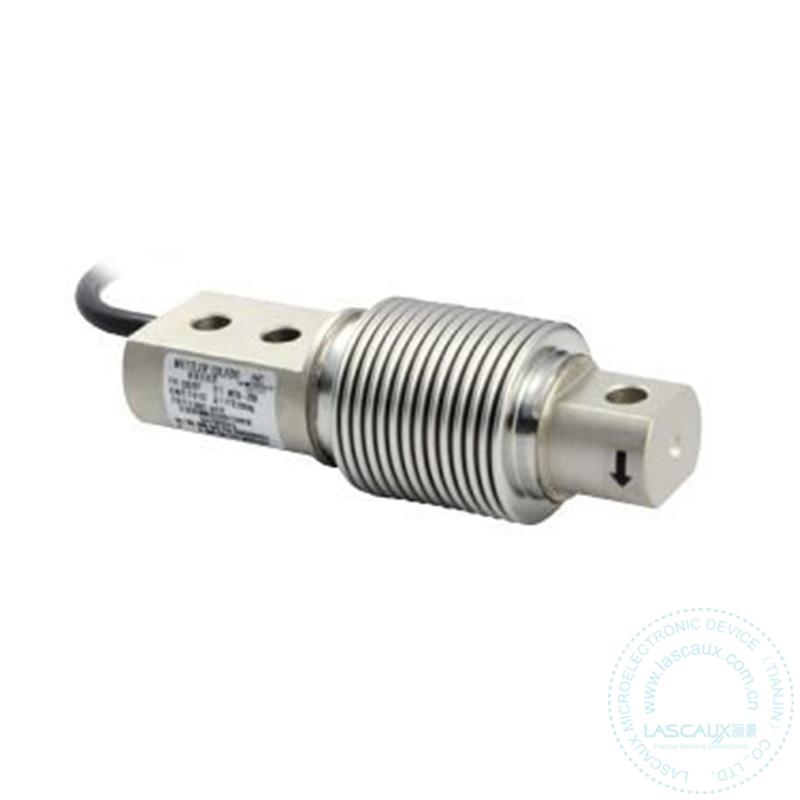

梅特勒MTB波纹管传感器，Mettler Teledo托利多称重传感器. |
| 波纹管式称重传感器 |
| 选用不锈钢材质，完全焊接密封技术 |
| 防护等级IP68 |
| 主要应用于包装秤盘、搅拌站、皮带秤上面 |
| 量程可选：50，75，100，200，300，500kg |
|
1. 避免超量程使用，使用时不能过载 2.使用时注意使传感器垂直载荷 |
| Product name : | MTB Beam Load Cells |
| Product brand : | METTLER TOLEDO |
| Warranty: | 12个月 |
| 额定载荷: | 10kg,20kg,30kg,50kg,75kg,100kg,200kg,300kg,500kg |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 重复性误差: | ≤0.01%R.C. |
| 精度等级: | C3 |
| 额定输出: | 2±0.002mV/V |
| 非线性: | ≤0.017%R.C. |
| Hysteresis: | ≤0.017%R.C. |
| Input impedance: | 387±4 |
| Output impedance: | 350±1Ω |
| Insulation resistance: | ≥5000(50V DC) |
| Rate Excitation: | 5-15v |
| Maximum excitation: | 20v |
| Safe Overload: | 150%R.C. |
| Ultimate overload: | 300%R.C. |
| Protection class: | IP68 |
| packing means: | 焊接密封 |
| The lengh of the cable: | 3m |
| Tightening torque: | 26N·m(10kg-300kg),54N·m(500kg) |
| Material: | 不锈钢 |
