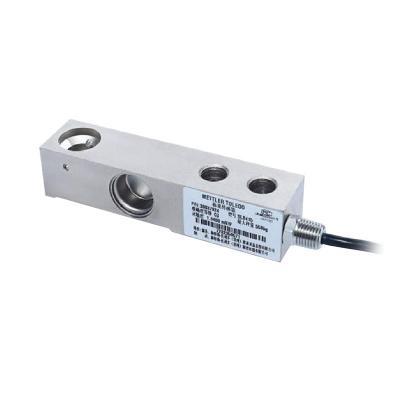

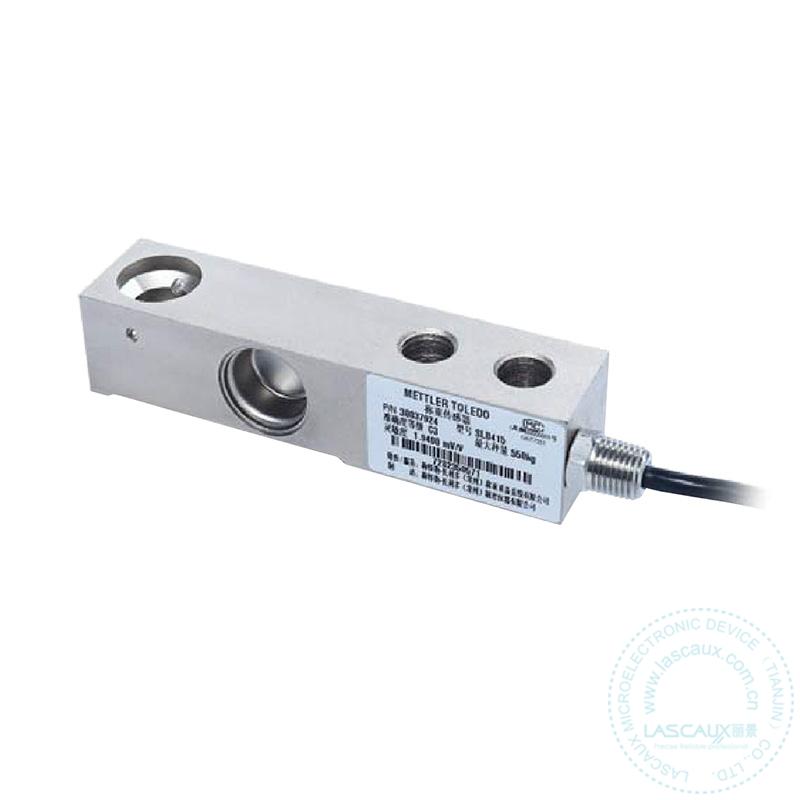

| Product name : | SLB415 Beam Load Cells |
| Product brand : | METTLER TOLEDO |
| Warranty: | 12个月 |
| 额定载荷: | 110kg,220kg,550kg,1.1t,2.2t,4.4t |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 综合误差: | ≤0.018 |
| 重复性误差: | ≤0.01%R.C. |
| 精度等级: | C3 |
| 额定输出: | 0.97±0.002mV/V(0.11t)/1.94±0.002mV/V |
| Input impedance: | 381±4 |
| Output impedance: | 350±1Ω |
| Insulation resistance: | ≥5000(50V DC) |
| Rate Excitation: | 5-15v |
| Maximum excitation: | 20v |
| Safe Overload: | 150%R.C. |
| Ultimate overload: | 300%R.C. |
| Protection class: | IP68 |
| packing means: | 焊接密封 |
| The lengh of the cable: | 2m,3m,5m,10m |
| Tightening torque: | 98N·m(0.11t-2.2t),275N·m(4.4t) |
| Material: | 合金钢 |
| Bearing hole structure: | 盲孔 |
