梅特勒SLB215梁式传感器，Mettler Teledo托利多称重传感器. |
| 防护等级：IP68 |
| 合金钢材质，表面镀镍材料，激光焊接密封 |
| 适用于电子平台秤以及称重配料等干燥环境 |
| 精度等级：C1/C3 |
| 量程：220kg,550kg,1.1t,2.2t,4.4t |
| 该系列传感器可选防爆型 |
| 连接件需要另外选购 |
|
量程 |
D(2X) |
D1 |
D2 |
H |
H1 |
H2 |
H3 |
H6 |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
W |
W1 |
|
220-1100kg |
13.0 |
12.5 |
M12 |
30.2 |
1.8 |
20 |
16.0 |
0.48 |
133.4 |
56.5 |
101.6 |
25.4 |
15.4 |
6.4 |
30.7 |
6.5 |
|
2200kg |
13.0 |
12.5 |
M12 |
36.6 |
2.6 |
20 |
19.6 |
2.6 |
136.7 |
55.5 |
101.6 |
25.4 |
18.4 |
|
36.8 |
6.0 |
|
4400kg |
20.5 |
22.2 |
M20 |
42.9 |
2.5 |
20 |
22.7 |
2.5 |
171.5 |
73.8 |
133.4 |
38.1 |
21.4 |
|
42.9 |
6.0 |
|
1. 避免超量程使用，使用时不能过载 2.使用时注意使传感器垂直载荷 |

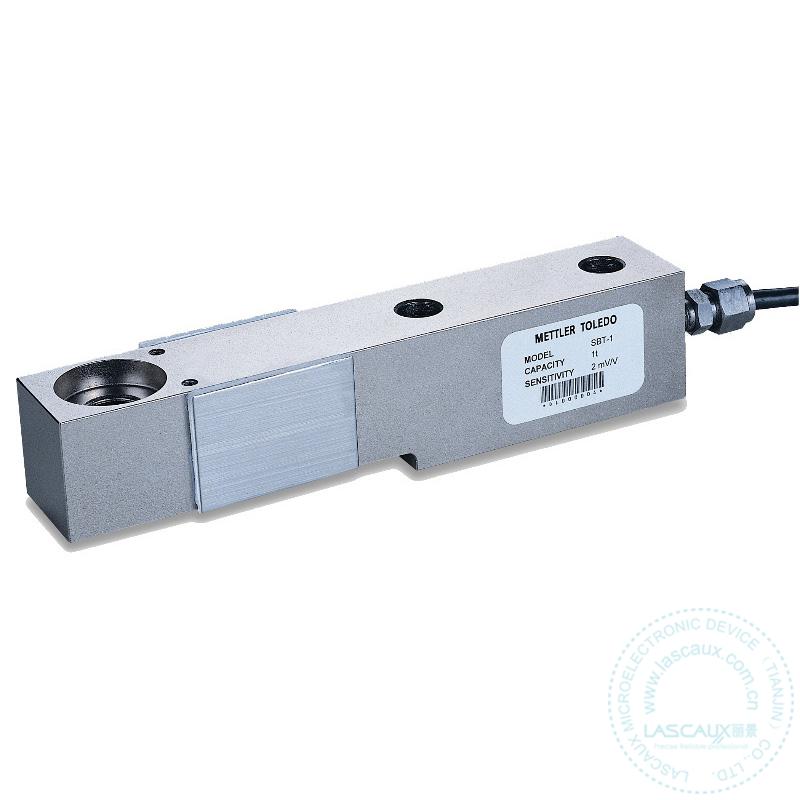

| Product name : | SBT Beam Load Cells |
| Product brand : | METTLER TOLEDO |
| Warranty: | 12个月 |
| 额定载荷: | 0.3t，0.5t，1t，2t，3t，5t |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 重复性误差: | ≤0.01%R.C. |
| 精度等级: | C3 |
| 额定输出: | 2±0.002mV/V |
| 非线性: | ≤0.02%R.C. |
| Hysteresis: | ≤0.02%R.C. |
| Input impedance: | 381±4 |
| Output impedance: | 350±1Ω |
| Insulation resistance: | ≥5000(50V DC) |
| Rate Excitation: | 5-15v |
| Maximum excitation: | 20v |
| Safe Overload: | 150%R.C. |
| Ultimate overload: | 300%R.C. |
| Protection class: | IP67 |
| The lengh of the cable: | 4m(0.3t-3t),5m(5t) |
| Tightening torque: | 98N·m(0.3t-2t),160N·m(3t),275N·m(5t) |
| Material: | 合金钢 |
| Bearing hole structure: | 通孔 |
