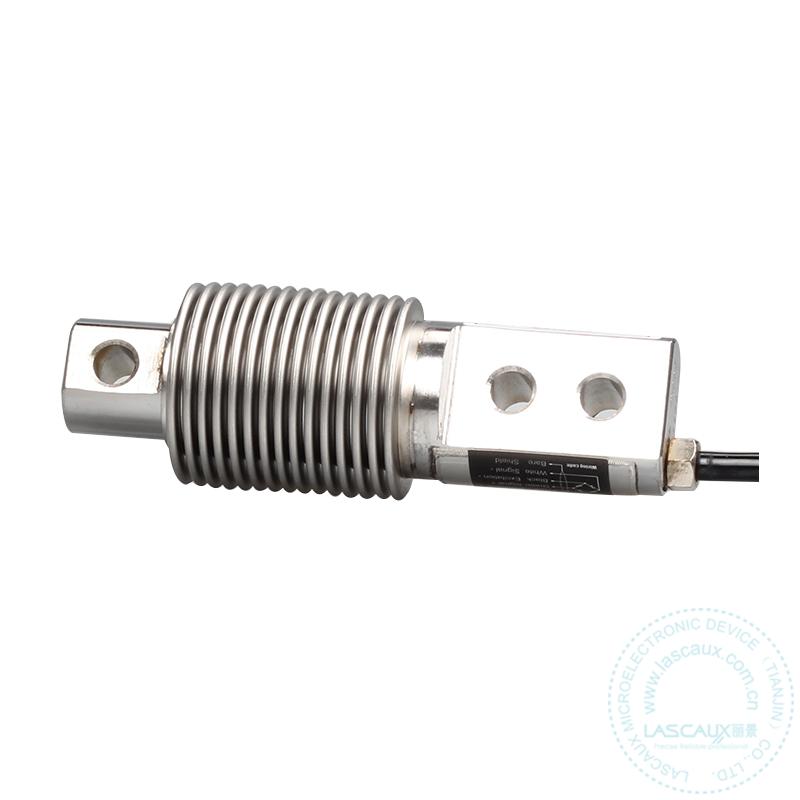

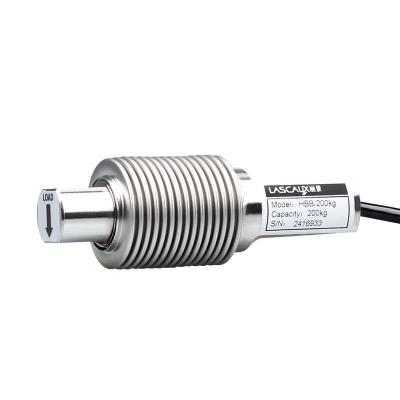

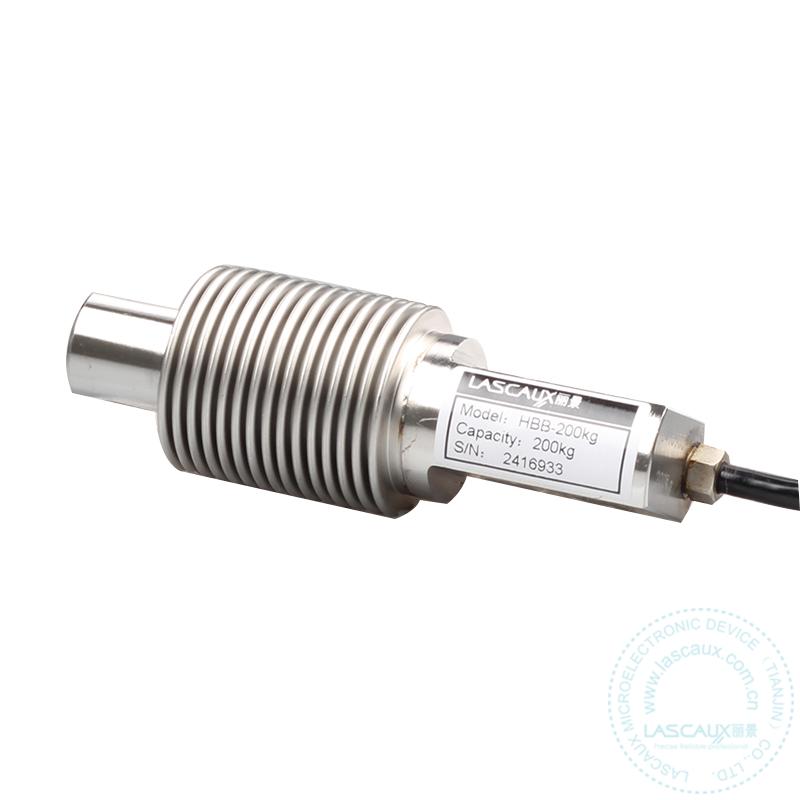

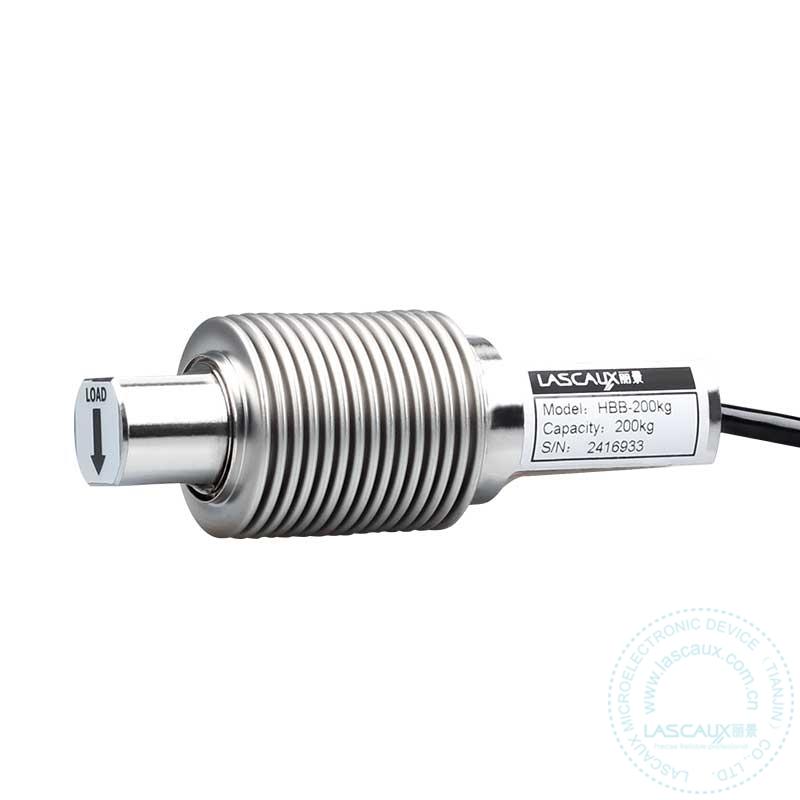

HBB Single Ended Shear Beam Load Cell

Be suitable for a wide range of applications，it is available for the humid and corrosion environment. And it also puts into use in Packaging machines, Belt weighing, Hopper scales, Platform scales, Industries of Foods, Pharmaceuticals, which has huge impo

本店价：

👈Consult customer service for a quote 18 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

10kg

20kg

50kg

100kg

200kg

300kg

500kg

Single Ended Shear Beam Load Cell

Description：

Model: HBB

Data sheet

HBB data

Features:

1. Capacities (kg): 10 to 500

2. Compact structure, easy to install

3. High comprehensive precision, high stability

4. The capacity of anti-deviated load is very strong

5. Stainless steel material

6. Degree of protection reaches to IP68

7. Module installing

Applications:

Be suitable for a wide range of applications，it is available for the humid and corrosion environment. And it also puts into use in Packaging machines, Belt weighing, Hopper scales, Platform scales, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Specifications:

Rated Load	kg	10,20,50,100,200,300,500
Rated Output	mV/V	2.0±0.0050
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.02
Non-linearity	%R.O.	±0.01
Hysteresis	%R.O.	±0.01
Repeatability	%R.O.	±0.01
Creep/30 minutes	%R.O.	±0.01
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Stainless Steel
Degree of protection		IP68
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–
Tightening torque	N·m	10kg-200kg:25 N·m 300kg-500kg:60 N·m

Specification

Product name :	HBB Single Ended Shear Beam Load Cell
Product brand :	LIBIRINTH
Rated Load:	10kg，20kg，50kg，100kg，200kg，300kg，500kg
Rated Output:	2.0±0.0050mV/V
Comprehensive Error:	0.02%R.O.
Non-linearity:	0.02%R.O.
Hysteresis:	0.02%R.O.
Repeatability:	0.02%R.O.
The lengh of the cable:	3m
Input Impedance:	380±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
Tightening Torque:	10kg-200kg：25N·m，300kg-500kg：60N·m
